I have noticed that the Solar Tube Well is the most demanding option to drain underground water for free, using the electricity that is generated by solar panels in Pakistan. A normal tube well electricity bill ranging from 2,00,000 to 3,00,000 rupees (2 to 3 lakh) is unbearable for farmers in Pakistan.
I have verified that the latest Solar Tube Well Price in Pakistan ranges from just 5,00,000 to 20,00,000 rupees, depending on the size (3,4,5,6, inches), and HPs(3HP,5HP,10HP,20HP) in Pakistan in 2026. A small-size or HP tube well price is also low, but a big size, as well as the HP price, is very high in Pakistan.
A solar tube well start their work at 9 in the morning when the sunlight is available and ends at 4 in the evening when the sunlight is low. In this duration, a solar tube well can irrigate 3 to 20 acres and save thousands of rupees daily and millions of rupees monthly for farmers.
My Pro Tip: Always install the best quality materials for long-term benefits in Pakistan. Install A-grade solar panels that can generate electricity for 25 years, as well as batteries, inverters, motors, and wires.

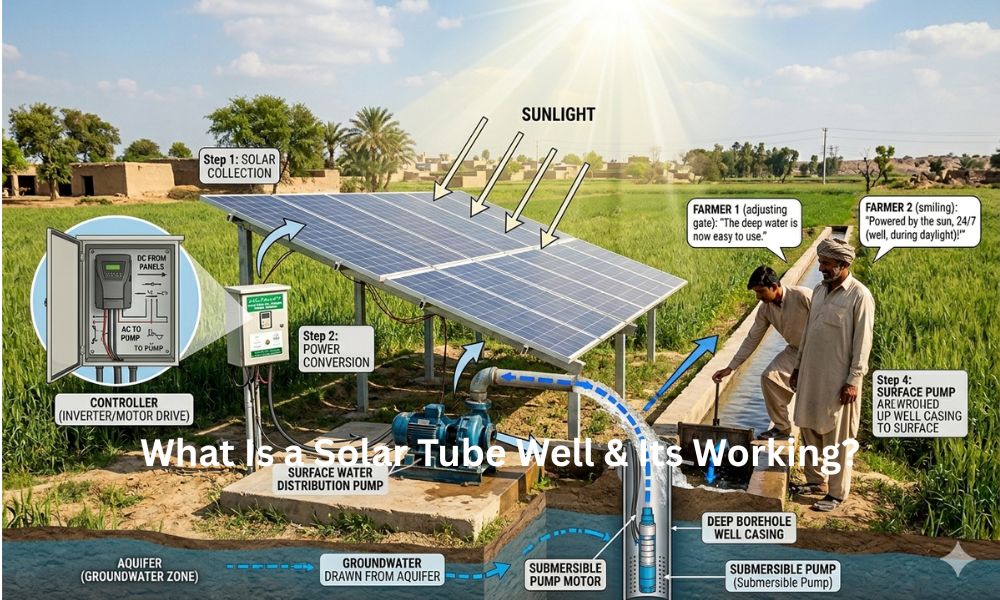

What Is a Solar Tube Well & Its Working?
It is very informative news that a solar tube well is an irrigation system that uses solar energy to power a water pump, drawing water from underground without depending on the electricity grid or diesel fuel in Pakistan.
It is also important to note that Solar panels installed near the tube well generate DC electricity, which is converted through a Variable Frequency Drive (VFD) or solar pump inverter to run the motor.
My personal experience: The system works best during daylight hours, roughly 8 to 10 hours per day during summer, and is designed to store or use water directly for field irrigation. Once installed, it runs at near-zero operating cost for 20 to 25 years in Pakistan.

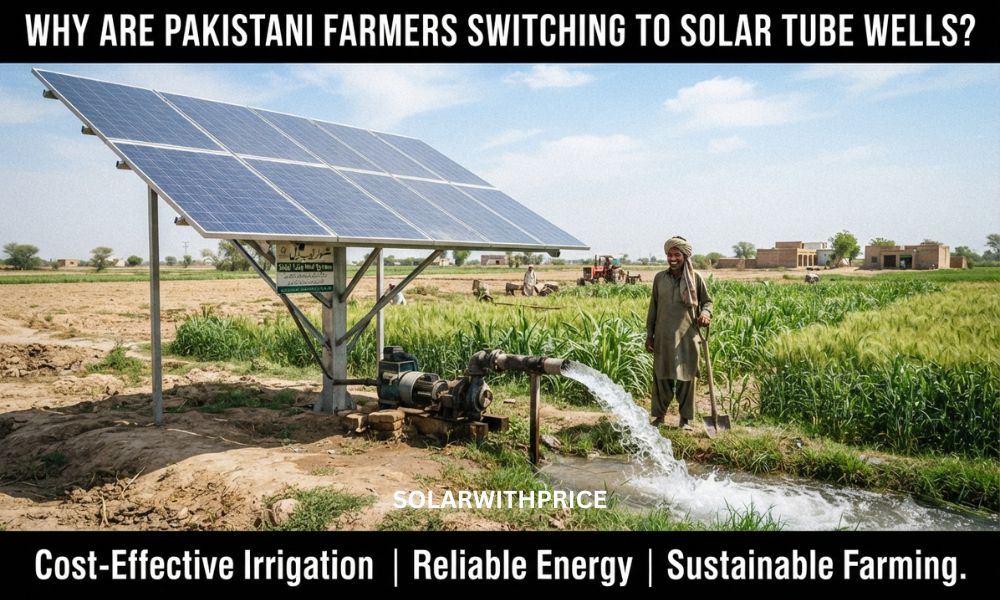

Why Are Pakistani Farmers Switching to Solar Tube Wells?
It is very informative news that Pakistan’s agricultural sector contributes roughly 24% of GDP and supports close to 45% of employment in provinces like Punjab.
There are a lot of farmers who have long been squeezed between rising electricity tariffs, diesel costs of 3 to 4 litres per hour of operation, and load shedding that can disrupt critical irrigation windows.
My personal experience: A farmer in Okara, Mian Muhammad Saleem Wattoo, put it plainly: when he was running a diesel engine, it cost three to four litres of fuel per hour.
Now, with 20 solar panels of 585 watts, he runs a 15 HP motor completely free of charge. His entire solar investment paid back within a year.
Solar Tube Well Prices in Pakistan 2026: By Horsepower
Here, we are discussing the price of a solar tube well system in Pakistan, which depends on the horsepower (HP) of the pump, the number of solar panels, the type of mounting structure, and the brand of components used in Pakistan in 2026.

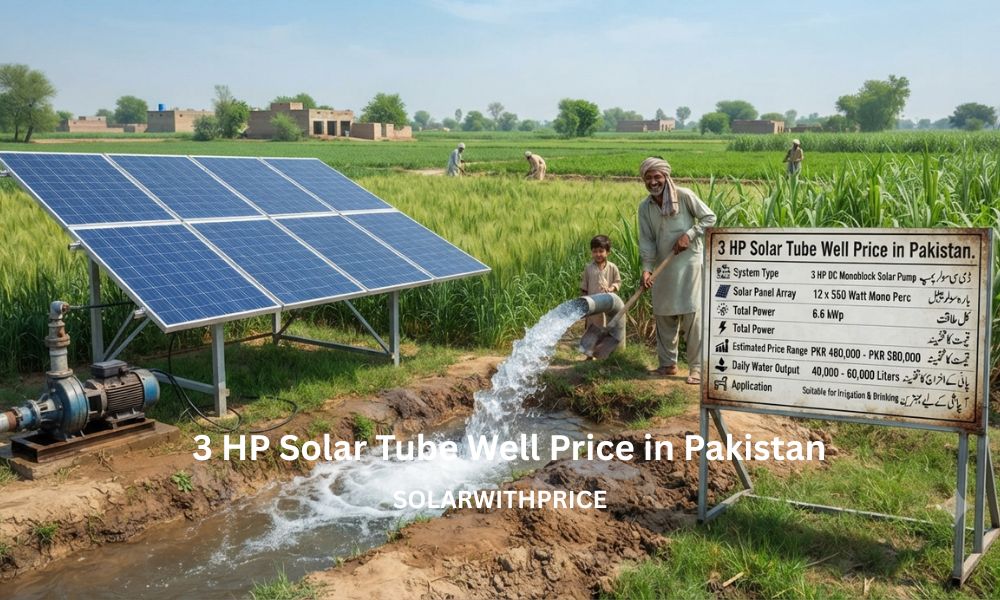

3 HP Solar Tube Well Price in Pakistan (2026 Breakdown)
If you have a small farm or a single tube well for domestic use, a 3 HP solar system is usually enough in Pakistan in 2026.
It works well for 1 to 3 acres, and it costs a lot less than the bigger 10 HP or 15 HP setups. Here is the latest price breakdown so you know exactly what you are paying for.
3 HP Solar Tube Well Price Table
| Component | Details | Price (PKR) |
|---|---|---|
| Solar Panels | 6 panels, 500–545 watts | Rs. 180,000 – 240,000 |
| VFD (Variable Frequency Drive) | 5 kW controller | Rs. 60,000 – 90,000 |
| Submersible Pump/Motor | 3 HP | Rs. 55,000 – 80,000 |
| Mounting Structure (L2) | Ground-fixed, standard | Rs. 30,000 – 45,000 |
| Mounting Structure (Pole) | Elevated, more durable | Rs. 60,000 – 90,000 |
| Cabling, Fittings & Installation | Wires, switches, labor | Rs. 20,000 – 30,000 |
Total Cost
- With L2 structure: Rs. 345,000 – 400,000
- With pole mounting structure: Rs. 450,000 – 515,000
My pro tip: Prices move up or down depending on panel brand, motor make, and current market rates. Chinese Tier-1 panels like Jinko or Trina usually cost more than local brands, but they last longer.

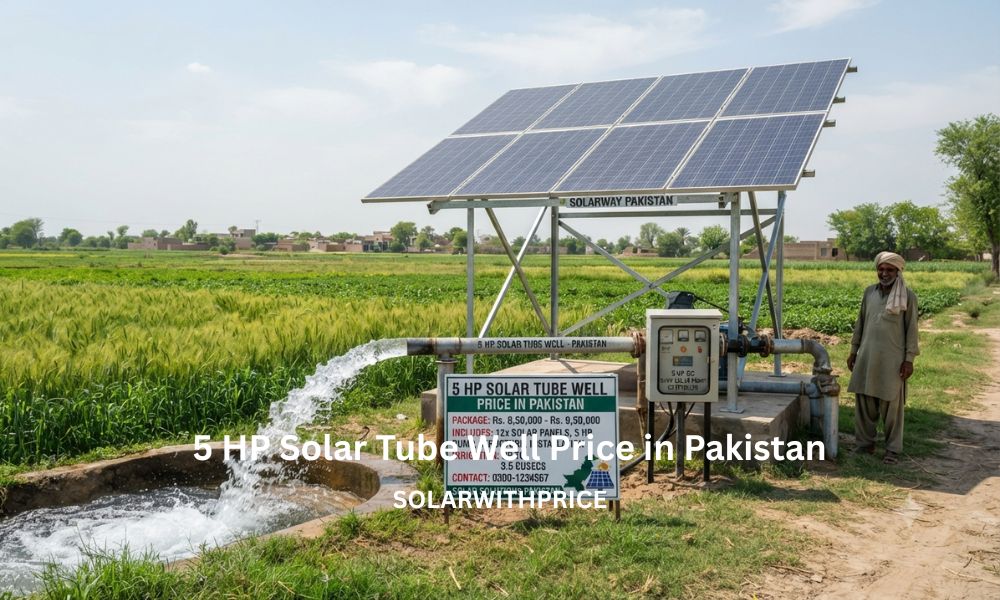

5 HP Solar Tube Well Price in Pakistan (2026 Breakdown)
The 5 HP solar tube well is the most common choice among Pakistani farmers because it can irrigate many acres in a day.
It covers more land than the 3 HP system and is strong enough for most medium-sized farms. Here is the full price breakdown.
5 HP Solar Tube Well Price Table
| Component | Details | Price (PKR) |
|---|---|---|
| Solar Panels | 10 panels, 545 watts each (approx. 5 kW total) | Rs. 280,000 – 350,000 |
| VFD (Variable Frequency Drive) | 5 kW controller | Rs. 90,000 – 120,000 |
| Submersible Pump/Motor | 5 HP | Rs. 80,000 – 110,000 |
| Mounting Structure (L2) | Ground-fixed, standard | Rs. 40,000 – 60,000 |
| Mounting Structure (Pole) | Elevated, more durable | Rs. 80,000 – 120,000 |
| Cabling, Fittings & Installation | Wires, switches, labor | Rs. 25,000 – 40,000 |
Total Cost Estimate
- With L2 structure: Rs. 540,000 – 600,000
- With pole mounting structure: Rs. 650,000 – 730,000

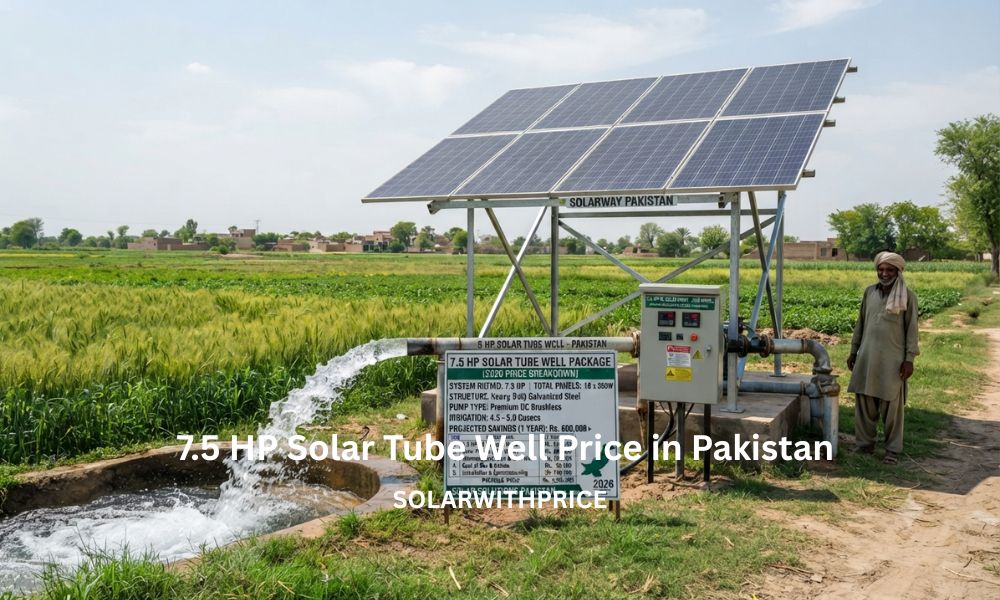

7.5 HP Solar Tube Well Price in Pakistan (2026 Breakdown)
The 7.5 HP solar tube well sits between the common 5 HP and 10 HP systems. It’s a good option for farmers who find 5 HP a bit weak for their land but don’t want to pay the full price of a 10 HP setup. Here’s the price breakdown.
7.5 HP Solar Tube Well Price Table
| Component | Details | Price (PKR) |
|---|---|---|
| Solar Panels | 14–15 panels, 545 watts each (approx. 7.5–8 kW total) | Rs. 420,000 – 480,000 |
| VFD (Variable Frequency Drive) | 7.5–8 kW controller | Rs. 110,000 – 150,000 |
| Submersible Pump/Motor | 7.5 HP | Rs. 100,000 – 130,000 |
| Mounting Structure (L2) | Ground-fixed, standard | Rs. 45,000 – 65,000 |
| Mounting Structure (Pole) | Elevated, more durable | Rs. 90,000 – 130,000 |
| Cabling, Fittings & Installation | Wires, switches, labor | Rs. 25,000 – 40,000 |
Total Cost Estimate
- With L2 structure: Rs. 700,000 – 780,000
- With pole mounting structure: Rs. 780,000 – 870,000

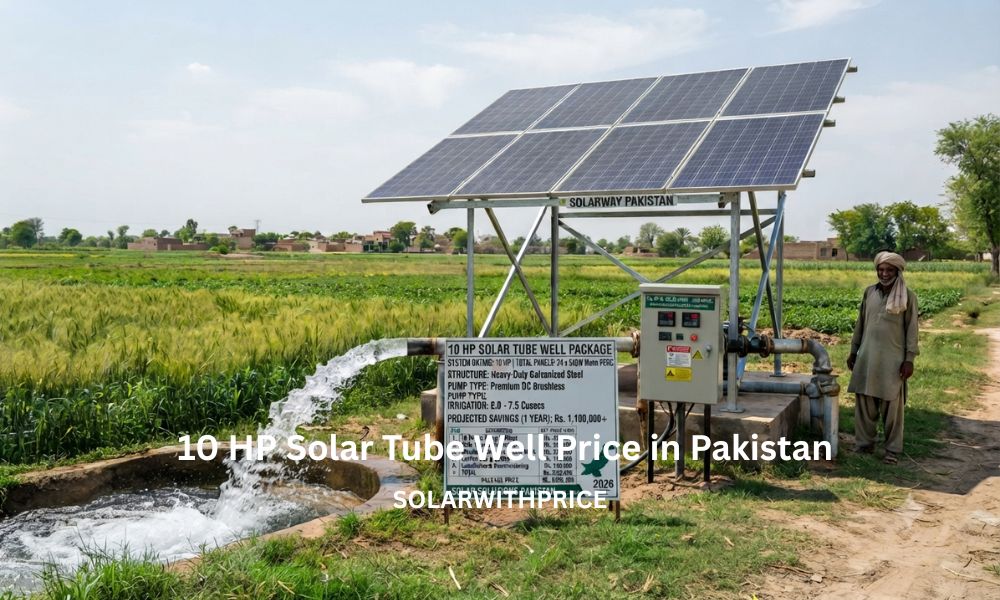

10 HP Solar Tube Well Price in Pakistan (2026 Breakdown)
The 10 HP solar tube well is the go-to choice for medium to large landowners in Pakistan in 2026. It can irrigate many acres in a day with huge savings in 2026.
It covers more acreage than the 5 HP or 7.5 HP systems and is one of the most popular sizes for government subsidy schemes. Here’s the price breakdown.
10 HP Solar Tube Well Price Table
| Component | Details | Price (PKR) |
|---|---|---|
| Solar Panels | 18–20 panels, 545 watts each (approx. 10–11 kW total) | Rs. 550,000 – 620,000 |
| VFD (Variable Frequency Drive) | 11 kW controller | Rs. 140,000 – 180,000 |
| Submersible Pump/Motor | 10 HP | Rs. 130,000 – 160,000 |
| Mounting Structure (L2) | Ground-fixed, standard | Rs. 55,000 – 80,000 |
| Mounting Structure (Pole) | Elevated, more durable | Rs. 100,000 – 150,000 |
| Cabling, Fittings & Installation | Wires, switches, labor | Rs. 30,000 – 50,000 |
Total Cost Estimate
- With L2 structure: Rs. 880,000 – 950,000
- With pole mounting structure: Rs. 1,000,000 – 1,220,000
What Affects the Price
- Water depth: Deeper bore wells (200+ feet) need a stronger pump and larger array, pushing costs toward the higher end.
- Panel brand: Tier-1 brands like Jinko, LONGi, or Canadian Solar cost more but hold their output longer over 25 years.
- VFD quality: Industrial-grade VFDs from ABB, Schneider, or Invt cost more upfront but avoid early failure in field conditions.
- Crop type: Rice and sugarcane farms need more frequent watering than wheat or cotton, so plan pump run-time accordingly.
- City and installer: Prices vary a little between Lahore, Multan, Faisalabad, and other cities due to transport and labor charges.
Is 10 HP Enough for Your Land?
A 10 HP solar tube well typically suits farms between 7 to 15 acres, depending on water table depth and crop type. If your land is bigger, or you’re growing water-heavy crops like rice, you may need to step up to 15 HP, which starts around Rs. 1,150,000–1,250,000 with an L2 structure.
Government Subsidy on 10 HP Systems
The CM Punjab Solar Tube Well Scheme actively covers 10 HP to 20 HP systems, with the government paying a large share of the installation cost in recent phases.
Farmers with landholdings under roughly 12.5 acres are generally eligible, but exact subsidy percentage, deadlines, and required documents change between phases.
Apply through agriculture.punjab.gov.pk or your local Agriculture Department office to check the current status.
15 HP Solar Tube Well Price in Pakistan (2026 Breakdown)
The 15 HP solar tube well is built for larger landholdings in 2026. It’s a step up from the 10 HP system and can handle year-round irrigation for bigger farms without straining the pump. Here’s the price breakdown.
15 HP Solar Tube Well Price Table
| Component | Details | Price (PKR) |
|---|---|---|
| Solar Panels | 28–30 panels, 540–545 watts each (approx. 15–16 kW total) | Rs. 750,000 – 850,000 |
| VFD (Variable Frequency Drive) | 15 kW controller | Rs. 190,000 – 230,000 |
| Submersible Pump/Motor | 15 HP | Rs. 170,000 – 210,000 |
| Mounting Structure (L2) | Ground-fixed, standard | Rs. 70,000 – 100,000 |
| Mounting Structure (Pole) | Elevated, more durable | Rs. 150,000 – 200,000 |
| Cabling, Fittings & Installation | Wires, switches, labor | Rs. 35,000 – 60,000 |
Total Cost Estimate
- With L2 structure: Rs. 1,150,000 – 1,300,000
- With pole mounting structure: Rs. 1,250,000 – 1,690,000
What Affects the Price
- Water depth: Farms with bore wells 200–400 feet deep need a stronger pump setup, which pushes the price toward the higher end.
- Panel brand: Tier-1 brands (Jinko, LONGi, Canadian Solar) cost more upfront but perform better over 25+ years.
- VFD quality: A low-quality VFD is the most common failure point in bigger systems. Industrial-grade brands like ABB, Schneider, or Invt are worth the extra cost.
- Crop type: A 15 HP system may cover 15–20 acres of wheat but less land under rice or sugarcane, since these crops need more water.
- Mounting structure: Pole mounting costs more but holds up better against wind and dust storms compared to L2 ground structures.
Is 15 HP Enough for Your Land?
A 15 HP solar tube well is generally suited for farms over 15 acres, depending on your water table depth and crop rotation.
If your land is under 20 acres with a shallow water table, 15 HP is usually enough. For land beyond 20 acres or deeper bore wells, a 20 HP system (starting around Rs. 1,650,000–1,900,000) is the next step up.
Government Subsidy on 15 HP Systems
The CM Punjab Solar Tube Well Scheme covers HP sizes up to 20 HP in recent phases, though eligibility is usually capped around 12.5 acres of landholding.
Since criteria and subsidy percentage shift between phases, check directly through agriculture.punjab.gov.pk or your local Agriculture Department office for the current terms.

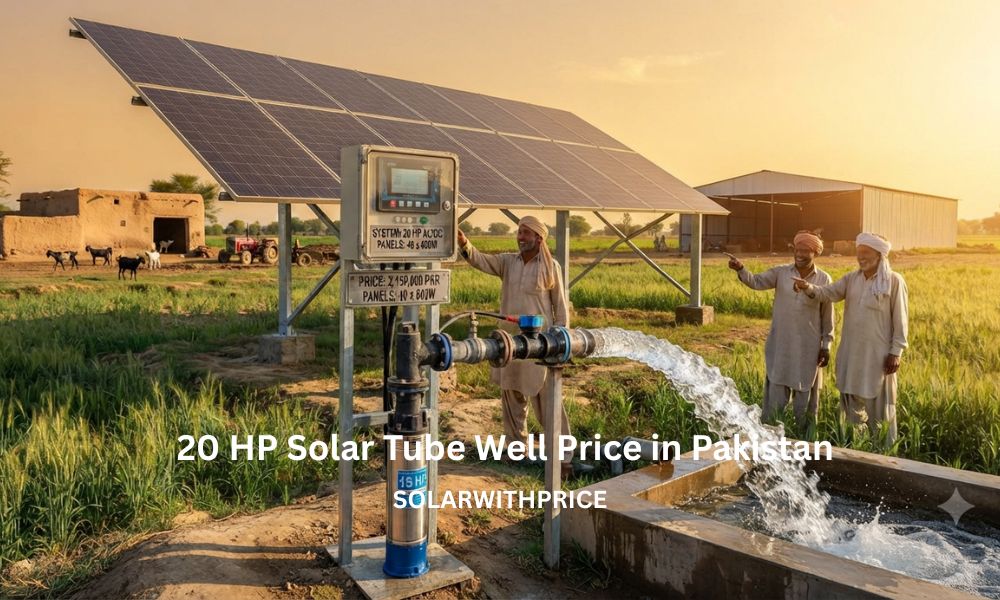

20 HP Solar Tube Well Price in Pakistan (2026 Breakdown)
The 20 HP solar tube well is meant for large landholdings, usually farms above 20 acres in Pakistan in 2026.
It’s one of the bigger systems most installers offer before moving into custom 25 HP and 30 HP setups. Here’s the price breakdown.
20 HP Solar Tube Well Price Table
| Component | Details | Price (PKR) |
|---|---|---|
| Solar Panels | 36 panels, 545 watts each (approx. 19–20 kW total) | Rs. 950,000 – 1,050,000 |
| VFD (Variable Frequency Drive) | 22 kW controller | Rs. 250,000 – 300,000 |
| Submersible Pump/Motor | 20 HP | Rs. 220,000 – 270,000 |
| Mounting Structure (L2) | Ground-fixed, standard | Rs. 90,000 – 130,000 |
| Mounting Structure (Pole) | Elevated, more durable | Rs. 180,000 – 250,000 |
| Cabling, Fittings & Installation | Wires, switches, labor | Rs. 40,000 – 70,000 |
Total Cost Estimate
- With L2 structure: Rs. 1,650,000 – 1,900,000
- With pole mounting structure: Rs. 1,800,000 – 2,100,000
What Affects the Price
- Water depth: Deep bore wells (300–400+ feet), common in parts of southern Punjab and Sindh, need a stronger pump and larger array, pushing costs higher.
- Panel brand: Tier-1 brands (Jinko, LONGi, Canadian Solar) cost more upfront but hold their output better over the system’s 25-year lifespan.
- VFD quality: At this size, the VFD is the most expensive single component and the most common failure point. Industrial-grade brands like ABB, Schneider, or Invt are worth paying extra for.
- Land for panels: A 20 HP system needs a sizeable open area for the solar array, roughly 1,300–1,600 sq ft, free from shading.
- Crop type: A 20 HP system typically covers 20–30 acres under wheat or cotton, but less land under rice or sugarcane due to higher water demand.
Is 20 HP Enough for Your Land?
A 20 HP solar tube well suits farms roughly between 20 and 30 acres, depending on water table depth and crop rotation.
For land beyond 30 acres, or very deep bore wells, farmers typically move to 25 HP or 30 HP custom systems, which most installers quote on request rather than as a fixed package.
Government Subsidy on 20 HP Systems
Government subsidy schemes like the CM Punjab Solar Tube Well Scheme generally cap eligibility around 12.5 acres of landholding, so many farmers going for 20 HP systems may not qualify for full subsidy under current criteria.
It’s worth checking directly with your local Agriculture Department office, since some phases have widened eligibility to cover larger landholdings and higher HP systems.
Note: These are market estimates as of mid-2026. Prices vary by brand, panel quality (Grade A vs Grade B), inverter type, and region. Always get at least 2–3 quotes from local vendors before purchasing.

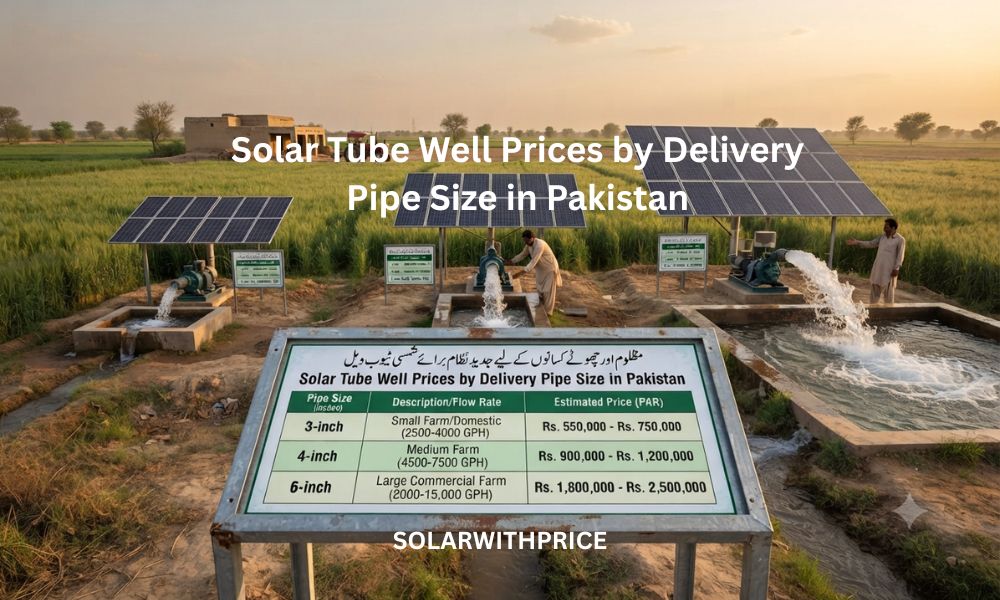

Solar Tube Well Prices by Delivery Pipe Size in Pakistan (2026)
Solar tube wells are also sized by delivery pipe diameter (inches), not just HP. The pipe size decides how much water flows out and how many acres you can irrigate. Here’s the full breakdown.
Price & Irrigation Table by Inch Size
| Delivery Size | Common HP Range | Price Range (PKR) | Irrigation Coverage |
|---|---|---|---|
| 2 Inch | 2 HP – 3 HP | Rs. 250,000 | 1 – 2 acres |
| 3 Inch | 5 HP – 7.5 HP | Rs. 750,000 | 2 – 5 acres |
| 4 Inch | 7.5 HP – 10 HP | Rs. 950,000 | 5 – 10 acres |
| 5 Inch | 10 HP – 15 HP | Rs. 1,300,000 | 10 – 15 acres |
| 6 Inch | 15 HP – 25 HP | Rs. 2,400,000 | 15 – 25+ acres |
What Each Size Is Best For
2 Inch – Best for small kitchen gardens, nurseries, or very small farms under 2 acres. Cheapest entry point into solar tube wells.
3 Inch – Suited for small to mid-size farms of 2 to 5 acres. Most common with 5 HP to 7.5 HP motors, and a good balance of cost and water output.
4 Inch – A popular mid-range choice for farms of 5 to 10 acres. Works well with 7.5 HP to 10 HP setups, covering most medium landholdings in central Punjab.
5 Inch – Built for bigger farms of 10 to 15 acres. Pairs with 10 HP to 15 HP motors, giving enough flow for year-round irrigation without straining the pump.
6 Inch – For large-scale farming above 15 acres. Runs on 15 HP to 25 HP systems and needs a larger solar array, but delivers the highest water output of all sizes.
What Affects Pricing Across All Sizes
- Water depth: Deeper bore wells need stronger pumps regardless of pipe size, which raises cost at every level.
- Panel brand: Tier-1 brands (LONGi, Jinko, Canadian Solar) cost more but perform better over 25 years.
- VFD quality: Larger pipe sizes need bigger, better-quality VFDs. Cheap VFDs fail faster under heavy daily use.
- Mounting structure: L2 (ground) structures are cheaper; pole structures cost more but resist wind and dust better.
- Crop type: Rice and sugarcane need more water than wheat or cotton, so the same pipe size may cover less land under water-heavy crops.

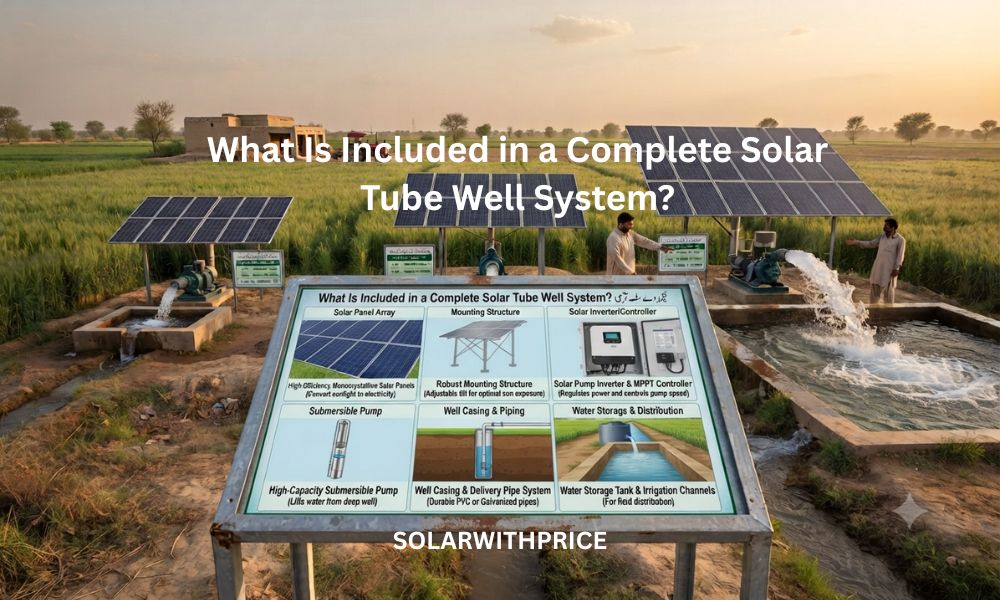

What Is Included in a Complete Solar Tube Well System?
There, we discuss all the important tools that are needed to run a solar tube well with some detail as follows.
- Solar Panels — Grade A monocrystalline or polycrystalline panels (Canadian Solar, JA Solar, Longi, etc.)
- Solar Pump Inverter / VFD — Controls pump speed and protects against voltage fluctuations
- Submersible Pump Motor — Stainless steel or cast iron pump matched to your depth and flow rate
- Mounting Structure — Galvanised steel L2 frame, pole-mounted, or rooftop
- DC and AC Disconnect Switches — For safety and system isolation
- Combiner Box / Y-cable — To wire multiple panels together
- Wiring and Conduit — PV-rated DC cables
- Installation Labour — Site visit, panel installation, motor lowering, testing

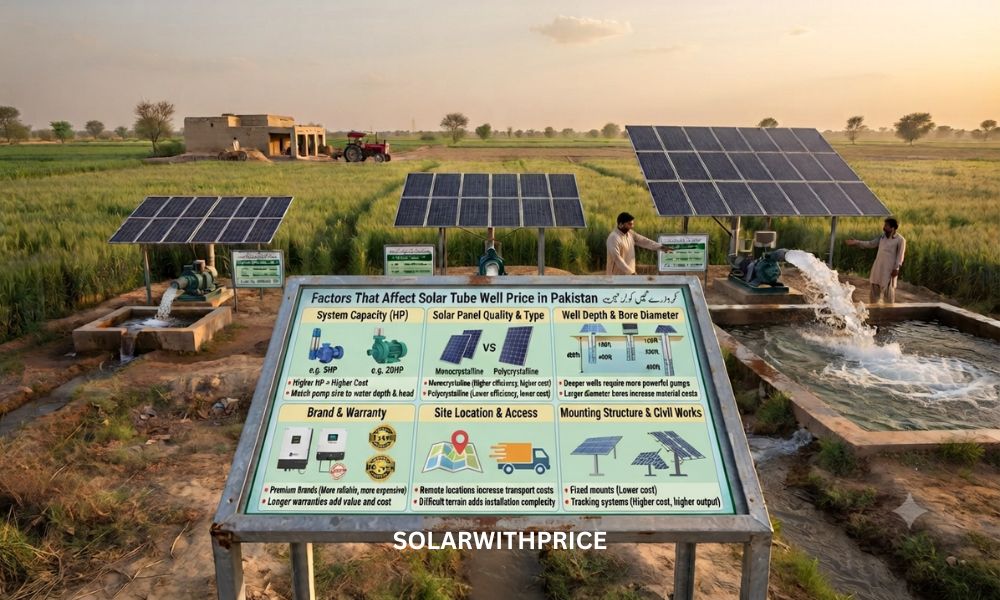

Factors That Affect Solar Tube Well Price in Pakistan 2026
1. Pump Horsepower
The bigger the pump, the more power it needs, the more panels you require, and the higher the cost. Always calculate your required HP based on the depth of your water table and the flow rate needed for your land.
Use this formula as a rough guide:
Motor HP = (Flow Rate in GPM × Depth in Feet) ÷ (3960 × Efficiency)
2. Water Table Depth
Shallow wells (under 50 feet) need less powerful pumps. Deep wells (100–200 feet) require higher HP and stronger motors, increasing costs significantly.
3. Mounting Structure Type
- L2 Fixed Structure — Most affordable; panels fixed at a set angle
- Pole-Mounted Structure — Elevated mounting, easier to track the sun manually; 10–20% more expensive
- Single-Axis Tracker — Automated sun-tracking; expensive but increases output by up to 25%
4. Solar Panel Quality and Brand
Grade A panels from brands like Canadian Solar, JA Solar, Longi, and Risen cost more upfront but carry 25-year performance warranties. Off-brand or Grade B panels may be 15–20% cheaper but degrade faster.
5. VFD / Inverter Brand
Quality inverters from Growatt, Solis, Grundfos, or Lorentz are more reliable and come with proper warranty support. Cheaper no-name inverters may fail within 2–3 years.
6. Location and Accessibility
Remote areas with difficult terrain, far from cities like Lahore, Faisalabad, or Multan, may incur additional transport and installation charges.
Government Subsidies for Solar Tube Wells in Pakistan (2026)
Punjab Government’s CM Solarization Program for Agri Tube Wells
The Punjab government has allocated Rs. 9 billion to convert 8,000 agricultural tube wells from electricity and diesel to solar power. The subsidy tiers are:
| Solar System Size | Government Subsidy |
|---|---|
| Up to 10 kW | Rs. 500,000 |
| Up to 15 kW | Rs. 750,000 |
| Up to 20 kW | Rs. 1,000,000 |
Eligibility criteria:
- Applicant must be a resident of Punjab with a valid CNIC
- Must own at least 1 acre of agricultural land in Punjab
- Only one solar system per family
- Applicable for both electric and diesel tube wells
Over 450,000 farmers applied for this scheme, reflecting how great the demand is. However, as of 2025, implementation faced delays, and farmers are encouraged to check the current status at cmstp.punjab.gov.pk for updates.
Federal Agricultural Financing (State Bank of Pakistan)
The State Bank of Pakistan (SBP) has refinanced solar tube well loans through commercial banks at a concessional markup rate. Key features include:
- Financing limit: Up to Rs. 2.5 million per applicant
- Markup rate: As low as 6% (refinanced by SBP)
- Repayment period: Up to 7 years
- Down payment: Minimum 10%
- Collateral: The installed solar system itself serves as security
Private Financing Options
Several solar companies offer in-house installment plans:
- 20% down payment, with the remaining 80% paid over 3–5 years
- Some companies allow quarterly or bi-annual repayments to match harvest cycles
Solar Tube Well vs Diesel Tube Well vs Electric Tube Well in Pakistan 2026
| Factor | Electric Tube Well | Diesel Tube Well | Solar Tube Well |
|---|---|---|---|
| Monthly Running Cost | Rs. 15,000–40,000+ | Rs. 20,000–50,000+ | Near Zero |
| Fuel/Energy Source | Grid electricity | Diesel | Sunlight |
| Load Shedding Impact | High | None | None (daytime) |
| 25-Year Running Cost | Rs. 45 Lakh+ | Rs. 60 Lakh+ | Near zero |
| Initial Investment | Rs. 50,000–100,000 | Rs. 80,000–150,000 | Rs. 3.5L – 35L |
| Payback Period | — | — | 1–3 years |
The numbers make a compelling case because A 5 HP electric tube well can cost Rs. 15,000 to Rs. 25,000 per month in electricity bills alone.
My personal experience: Over 25 years, that is Rs. 45 lakh or more in energy costs. A solar system costing Rs. 6–7 lakh upfront pays for itself within 1 to 2 years.
How to Choose the Right Solar Tube Well System
There, we discuss step by step how to choose the Right Solar Tube Well System in Pakistan as below.
- Land size (acres) — Determines how much water you need per hour
- Water table depth (feet) — Determines pump HP and head pressure required
- Soil type and crop type — Affects irrigation frequency
- Location — Affects sunlight hours; southern Pakistan gets more sun
- Grid availability — If you have reliable grid power, a hybrid system may be better
Once you have this data, a qualified solar installer can size the system correctly. Do not buy based on guesswork — an undersized system will fail to irrigate adequately, and an oversized system wastes money.
Top Solar Tube Well Companies in Pakistan 2026
There are also a lot of reputable companies that supply and install solar tube well systems across Pakistan nowadays in 2026.
- Alpha Solar — Well-known for agricultural solar systems; transparent pricing
- Soherwardia Solar Energy — Focused on farmer-oriented packages; Canadian Solar panels
- Sunny Path Energy — Comprehensive installation support
- EGreen Solar Energy — Competitive pricing with warranty packages
- Solar with Ashfaq — Good for installment-based buying
My pro tip: Always verify vendor credentials, check if they offer post-installation support, and confirm that panel and inverter warranties are properly registered.
Common Mistakes Farmers Make When Buying Solar Tube Wells
There are also a lot of Common Mistakes Farmers Make When Buying Solar Tube Wells that we discuss here.
- Buying on price alone — Cheap systems often use inferior Grade C panels and no-brand inverters that fail within 2 years
- Not calculating water table depth — Underestimating depth leads to wrong HP selection
- Skipping the VFD — Some vendors skip the Variable Frequency Drive to cut costs; this shortens motor life significantly
- No warranty documentation — Always get written warranties for panels (25 years), inverter (5–10 years), and pump (2–5 years)
- Not comparing at least 3 quotes — Prices vary widely; shop around
Is a Solar Tube Well Worth It in Pakistan?
Honestly — yes, for most farmers. If you are currently spending Rs. 15,000 to Rs. 40,000 per month on electricity or diesel for your tube well, a solar system typically pays for itself within 12 to 24 months. After that, the only high cost is occasional cleaning of panels and minor maintenance every few years.
The technology is proven, panel lifespans exceed 25 years, and Pakistan’s abundant sunshine — particularly in Punjab, Sindh, and Balochistan — makes solar one of the most sensible investments a farmer can make today.
With government subsidies potentially reducing the initial cost by Rs. 5 lakh to Rs. 10 lakh, the financial case becomes even stronger for eligible farmers.
Final WORDS
I have verified that the latest Solar Tube Well Price in Pakistan ranges from just 5,00,000 to 20,00,000 rupees, depending on the size (3,4,5,6, inches), and HPs(3HP,5HP,10HP,20HP) in Pakistan in 2026. A small-size or HP tube well price is also low, but a big size, as well as the HP price, is very high in Pakistan.
A solar tube well start their work at 9 in the morning when the sunlight is available and ends at 4 in the evening when the sunlight is low. During this duration, a solar tube well can irrigate 3 to 20 acres and save thousands of rupees daily and millions of rupees monthly for farmers.
My Pro Tip: Always install the best quality materials for long-term benefits in Pakistan. Install A-grade solar panels that can generate electricity for 25 years, as well as batteries, inverters, motors, and wires.
FAQs
4 Inch Solar Tube Well Price in Pakistan 2026
A 4-inch solar tube well price in Pakistan starts from Rs. 260,000 for small systems. Bigger 10HP to 15HP setups can cost between Rs. 1,020,000 and Rs. 1,450,000. Price depends on panel count, pump brand, and mounting structure.
How many solar panels are needed for a 4-inch tube well?
A 4-inch solar tube well usually needs 10 to 18 solar panels of 545 watts each. The exact number depends on the motor HP and water depth. More panels mean higher water output and higher cost.
Which HP motor is best for a 4 inch solar tube well?
Most 4 inch solar tube wells use a 10HP to 15HP motor for large farmland. This size is ideal for deep bores and high water demand. Smaller farms can also use a 5HP motor to save cost.
6 Inch Solar Water Pump Price in Pakistan 2026
A 6 inch solar water pump price in Pakistan ranges from Rs. 1,150,000 to Rs. 1,850,000. This size is used for large commercial farms and deep water tables. The price changes with VFD size and panel quality.
How much land can a 6 inch solar water pump irrigate?
A 6 inch solar water pump can easily irrigate large farms of 20 acres or more. It delivers high water flow for tube wells with deep bores. Farmers with big landholdings prefer this size for full-day irrigation.
Is a 6 inch solar water pump good for deep bores?
Yes, a 6-inch solar water pump works well for bores 200 feet deep or more. It uses a strong VFD and submersible pump for steady water flow. This makes it suitable for tough water table conditions in Punjab.
10 HP Solar Tubewell Price in Pakistan 2026
A 10 HP solar tubewell price in Pakistan is around Rs. 910,000 with an L2 mounting structure. With a pole mounting structure, the price can go up to Rs. 1,420,000. It includes 18 solar panels and an 11kW VFD.
How many acres can a 10 HP solar tubewell cover?
A 10 HP solar tubewell is best for farms between 10 and 15 acres. It gives enough water flow for regular crop irrigation. Larger landholdings may need a 15HP or 20HP system instead.
Does the government give subsidy on 10 HP solar tubewells?
Yes, the Punjab Solar Tubewell Scheme offers up to 80% subsidy on 10 HP systems. This lowers the farmer’s actual cost by a large margin. Farmers can apply through the Punjab Agriculture Department.
20 HP Solar Tubewell Price in Pakistan 2026
A 20 HP solar tubewell price in Pakistan falls between Rs. 1,800,000 and Rs. 2,200,000. This includes solar panels, VFD, submersible pump, and mounting structure. The final cost depends on brand and bore depth.
Who should choose a 20 HP solar tubewell?
A 20 HP solar tubewell suits farmers with more than 25 acres of land. It handles deep bores and high water demand with ease. This size is common in large agricultural zones of Punjab and Sindh.
How long does a 20 HP solar tubewell system last?
A 20 HP solar tubewell system lasts 25 years or more with proper care. Solar panels come with long performance warranties. The pump and VFD may need replacement after 10 to 15 years.
25 HP Solar Tubewell Price in Pakistan 2026
A 25 HP solar tubewell price in Pakistan is around Rs. 2,400,000 for a complete system. This is the highest capacity option for very large farms. Price varies based on panel brand and installation type.
What makes a 25 HP solar tubewell different from smaller sizes?
A 25 HP solar tubewell uses the largest VFD and most solar panels among tube well sizes. It is designed for very deep bores and huge water needs. This system suits big commercial farms with 30-plus acres.
Can farmers get subsidy on a 25 HP solar tubewell?
Yes, farmers can apply for subsidy under Punjab and Sindh solar tubewell schemes. The subsidy can cover a major part of the total system cost. This makes a 25 HP system affordable for large farmers too.
5 Inch Solar Tubewell Price in Pakistan 2026
What is the price of a 5 inch solar tubewell in Pakistan?
A 5 inch solar tubewell price in Pakistan ranges from Rs. 1,150,000 to Rs. 1,850,000. This size is considered a high-power commercial setup. It suits large-scale agricultural land with deep water tables.
What HP range fits a 5 inch solar tubewell?
A 5-inch solar tubewell usually pairs with a 15HP to 20HP motor. This combination gives strong water flow for big farms. Higher HP means more solar panels and higher upfront cost.
Is a 5 inch solar tubewell good for commercial farming?
Yes, a 5-inch solar tubewell is built for commercial and large-scale farming. It handles high water demand better than smaller 3-inch or 4-inch systems. Many big farmers in Punjab now prefer this size.
3 Inch Solar Tubewell Price in Pakistan 2026
A 3-inch solar tubewell price in Pakistan ranges from Rs. 530,000 to Rs. 750,000. This depends on the motor HP and number of solar panels used. It is a popular choice for small to medium farms.
Which HP motor works with a 3 inch solar tubewell?
A 3-inch solar tubewell mostly uses a 5HP to 7.5HP motor. This size fits farms between 2 and 3 acres well. It gives a good balance between cost and water output.
Is a 3 inch solar tubewell suitable for small farmers?
Yes, a 3 inch solar tubewell is one of the best options for small farmers. It costs less than 4-inch or 5-inch systems. It still gives enough water for regular crop irrigation needs.
15 HP Solar Tubewell Price in Pakistan 2026
A 15 HP solar tubewell price in Pakistan is around Rs. 1,250,000 with an L2 structure. With a pole mounting structure, the price can reach Rs. 1,690,000. The cost includes panels, VFD, and pump.
How much land does a 15 HP solar tubewell cover?
A 15 HP solar tubewell is ideal for farms with more than 20 acres of land. It gives strong water flow for medium to large irrigation needs. This size is common among mid-size commercial farmers.
What subsidy is available for a 15 HP solar tubewell?
Farmers can get up to 80% subsidy on 15 HP systems under the CM Punjab Solar Tubewell Scheme. This reduces the farmer’s share to a small upfront amount. Applications go through the Punjab Agriculture Department portal.
I AM CH SAMI ULLAH, THE TOP SOLAR PANEL SELLER AND INSTALLER IN PAKISTAN, WITH CHEAPEST RATES, OF TOP QUALITY. GET THE LATEST RATES ON SOLAR PANELS, FANS, ACs, TUBE WELLS, SOLAR FRIDGES, AND SOLAR ATTA CHAKKIS. WHATSAPP (03461320821)
